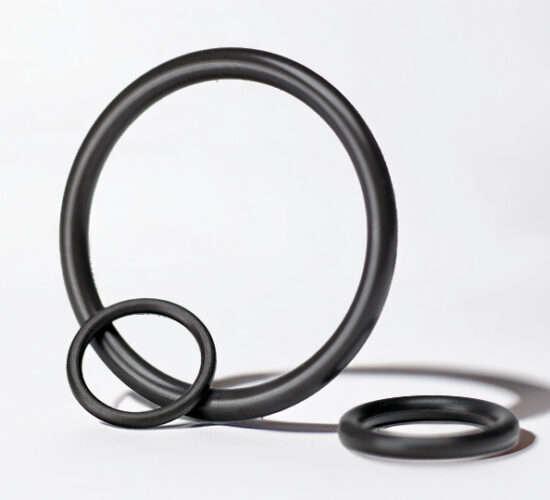

Extrusion-resistant nitrile sealing rings from Parker Hannifin

Extrusion-resistant nitrile sealing rings meet the requirements for high-pressure fittings

NM507 meets the complex AMS-P-5510 SAE specification, which requires a strict balance of low-temperature flexibility with compatibility with Mil-PRF-5606 hydraulic oil. Low-temperature flexibility can be measured using temperature retraction. NM507 has a TR-10 value of -46° in its original state. After a week of immersion in oil at 158°F, the measured TR-10 is -43°F.

Product advantages for aerospace applications:

• Sealing rings on straight thread and flared tube connectors assembled in AS4395 and AS5202 fittings in accordance with MS21344

• Systems containing air or hydraulic fluid in accordance with MILPRF-5606

• Operating temperature range from -65° to 160°F (-54° to 71°C)

• Sealing ring part numbers are designated MS28778-xxx, where xxx indicates the size

• QPL listed material per AMS-P-5510

• Sealing rings for use in Type I aircraft hydraulic systems to seal standard AS4395 and AS5202 pipe fittings as specified in MS21344

NAK is the official distributor of Parker in Ukraine. If you are interested in consulting and ordering, please contact us in a way that is convenient for you.
