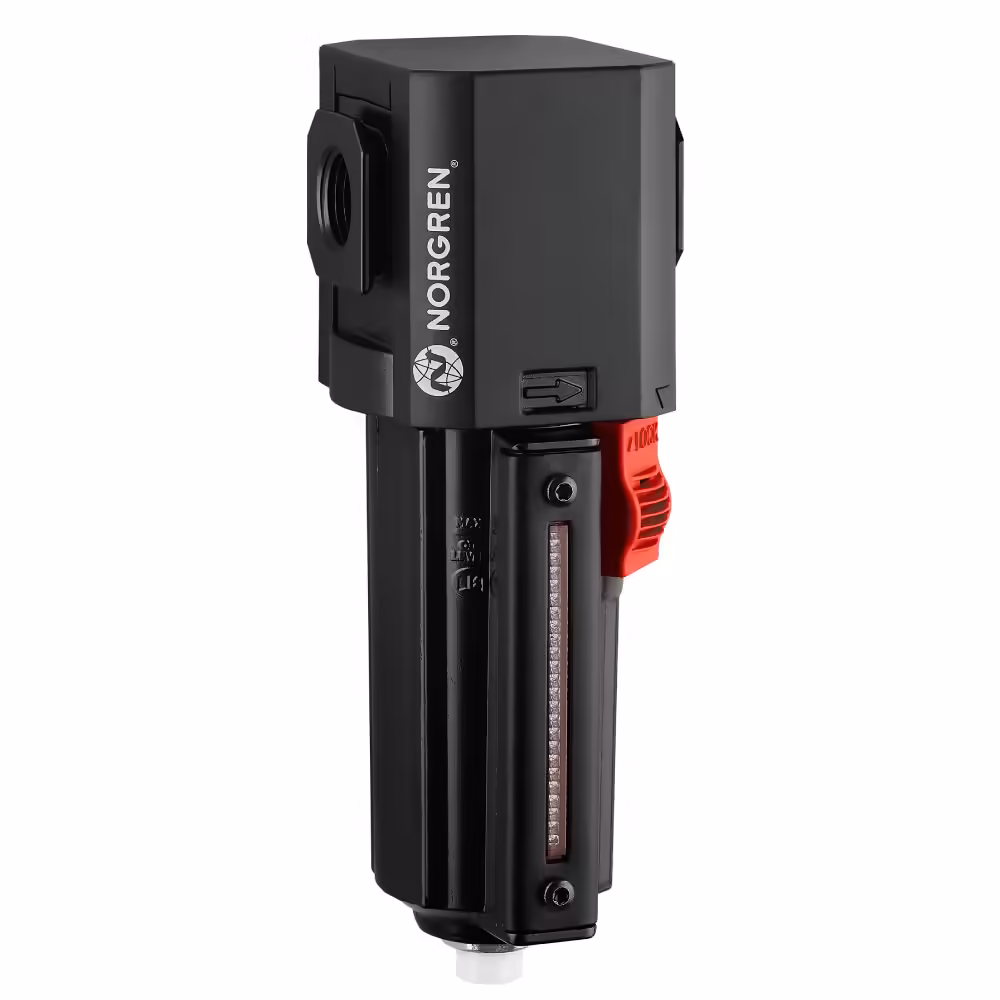

Фільтр стисненого повітря IMI Norgren Excelon Plus HF84G-6GN-AD3 для екстремальних умов, G3/4, 40 мкм
SKU: HF84G-6GN-AD3 Brand:

Compressed air filter IMI Norgren Excelon Plus HF84G-6GN-AD3 for extreme conditions, G3/4, 40 μm

Excelon Plus general purpose filter for harsh conditions: works from -40 to +80 °C, metal bowl with level indicator, G3/4, 78 dm3/s, up to 20 bar, automatic drain.

ManufacturerIMI Norgren
Series
TypeCompressed air filters
Port connection
Housing materialAluminium alloy
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

Excelon Plus general purpose filter for harsh conditions: works from -40 to +80 °C, metal bowl with level indicator, G3/4, 78 dm3/s, up to 20 bar, automatic drain.

Specifications

  • Connection: G3/4
  • Flow: 78 dm3/s
  • Operating temperature: -40…80 °C
  • Max inlet pressure: 20 bar
  • Filter element: Polypropylene (PP)
  • Filtration rating: 40 μm
  • Drain: Automatic
  • Bowl material: Aluminium alloy
  • Bowl type: Metal with liquid level indicator
  • Medium: Compressed air
  • Body material: Aluminium alloy
  • Elastomers: NBR
  • Weight: 0.52 kg

Specifications

ManufacturerIMI Norgren
Series
TypeCompressed air filters
Port connection
Housing materialAluminium alloy

Delivery and payment

Pickup in Lviv
79024, B. Khmelnytskoho St., 176, Lviv. Mon-Fri: 08:30-18:30
Nova Poshta / Ukrposhta

Same-day shipping for in-stock items once payment is received.

Bank transfer

Invoice for companies and sole proprietors, VAT included.
