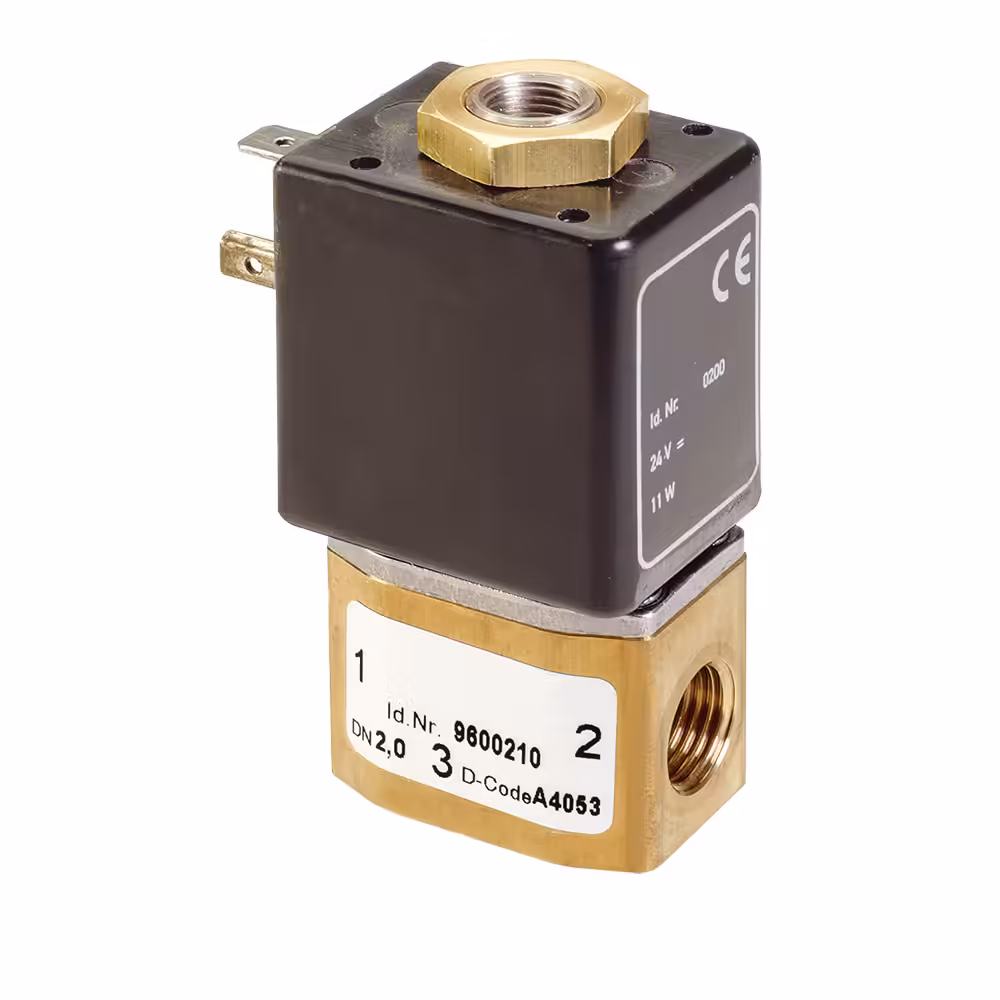

Клапан електромагнітний прямої дії IMI Norgren 9600210000000000, 3/2 NC, G1/4
SKU: 9600210000000000 Brand:

Direct solenoid poppet valve IMI Norgren 9600210000000000, 3/2 NC, G1/4

Direct solenoid actuated poppet valve for gases and liquids: 3/2 NC, G1/4, up to 10 bar. Supplied without solenoid.

ManufacturerIMI Norgren
Series
TypeFluid control valves
Port connection
Max operating pressure10 bar
Flow rate120 l/min
Housing materialBrass
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

Direct solenoid actuated poppet valve for gases and liquids: 3/2 NC, G1/4, up to 10 bar. Supplied without solenoid.

Specifications

  • Connection: G1/4
  • Function: 3/2
  • Default state: normally closed (NC)
  • Actuation: solenoid pilot / spring return
  • Operating pressure: 0…10 bar
  • Flow: 120 l/min
  • Ambient temperature: -25…80 °C
  • Medium: Gases, Liquids
  • Body material: Brass
  • Elastomers: NBR
  • Nominal diameter: 2 mm
  • Kv value: 0,1 m3/h
  • Electrical connection: Without solenoid
  • B10 life, cycles: 3 000 000
  • Weight: 0,344 kg

Specifications

ManufacturerIMI Norgren
Series
TypeFluid control valves
Port connection
Max operating pressure10 bar
Flow rate120 l/min
Housing materialBrass
