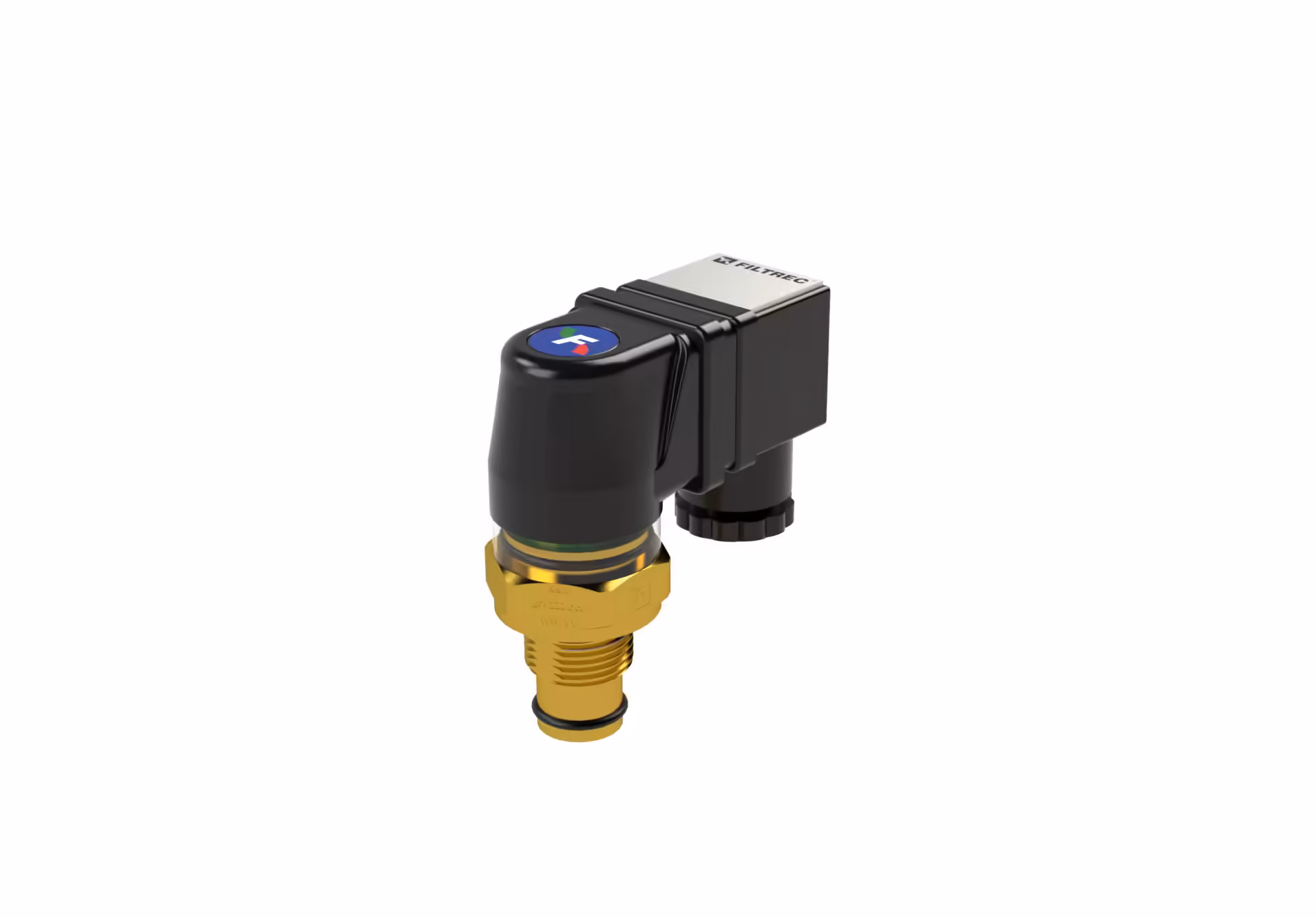

The VE series is a filter element clogging indicator with both visual indication and an SPDT changeover contact. It signals that the limit differential pressure has been reached and the element needs replacing.
Features
- Max operating pressure up to 420 bar
- Connection M20 × 1,5
- SPDT contact: up to 250 V AC (1 A resistive, 0,3 A inductive), up to 24 V DC (3 A resistive)
- Burst pressure 1260 bar
- Material: Brass / PA66 + glass fibre
Applications
Fitted to Filtrec in line and return filters for monitoring element condition.
