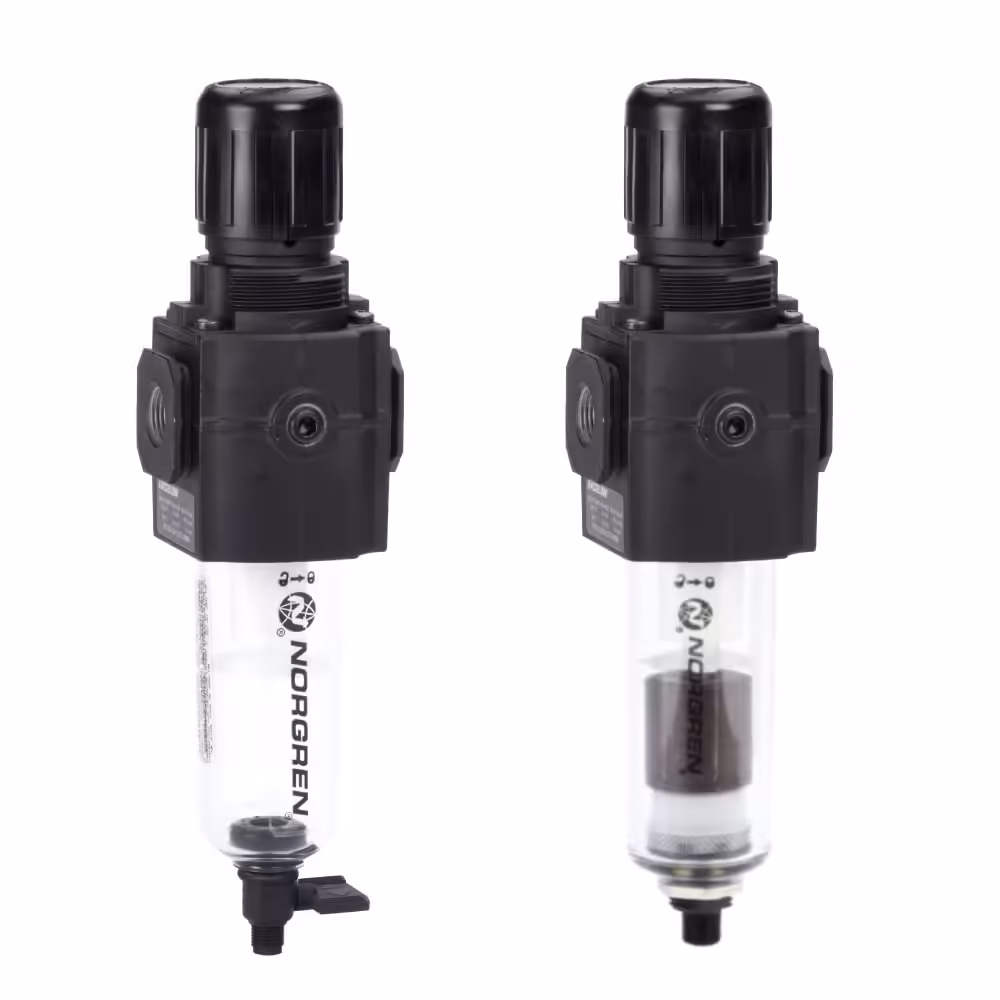

Фільтр-регулятор IMI Norgren Excelon B73G-4GK-AD3-RMN, G1/2, 40 мкм
SKU: B73G-4GK-AD3-RMN Brand:

Filter/regulator IMI Norgren Excelon B73G-4GK-AD3-RMN, G1/2, 40 μm

Excelon 73 filter/regulator: G1/2, 50 dm3/s, inlet pressure up to 17 bar, metal bowl with level indicator, automatic drain, without gauge (Rc1/8 port). Works from -34 to +80 °C.

ManufacturerIMI Norgren
Series
TypeFilter/regulators
Port connection
Housing materialAluminium alloy
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

Excelon 73 filter/regulator: G1/2, 50 dm3/s, inlet pressure up to 17 bar, metal bowl with level indicator, automatic drain, without gauge (Rc1/8 port). Works from -34 to +80 °C.

Specifications

  • Connection: G1/2
  • Flow: 50 dm3/s
  • Operating temperature: -34…80 °C
  • Max inlet pressure: 17 bar
  • Outlet pressure adjustment: 0.3…10 bar
  • Regulator type: General purpose
  • Relieving: Relieving
  • Filter element: Polypropylene (PP)
  • Filtration rating: 40 μm
  • Drain: Automatic
  • Bowl material: Aluminium alloy
  • Bowl type: Metal with liquid level indicator
  • Gauge port: Rc1/8
  • Adjusting knob: Acetal
  • Medium: Compressed air
  • Body material: Aluminium alloy
  • Elastomers: Chloroprene rubber (CR), NBR
  • B10 life, cycles: 5 000 000
  • Weight: 0.9 kg
