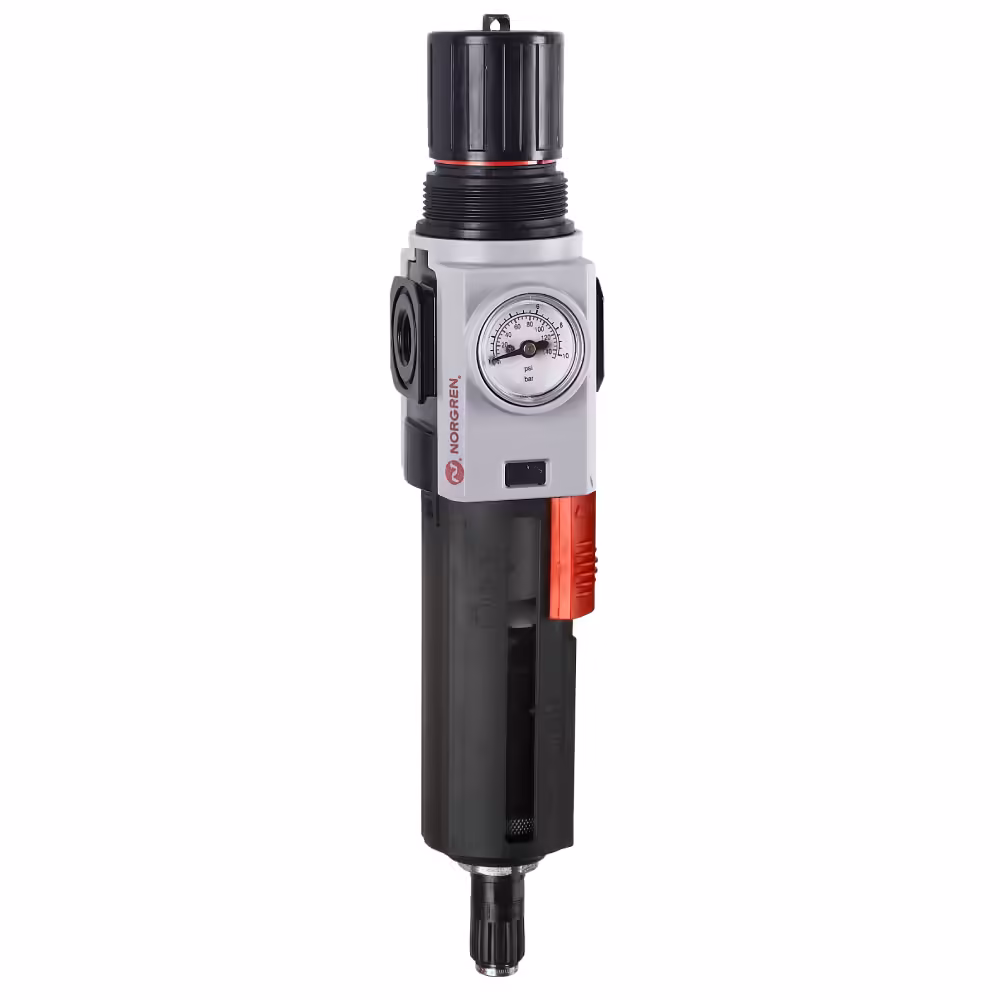

Compact Excelon Plus 82 series filter/regulator with a fine 5 μm element: G1/4, 37 dm3/s, 0.3…10 bar adjustment, automatic drain, with gauge.
Specifications
- Connection: G1/4
- Flow: 37 dm3/s
- Operating temperature: -10…60 °C
- Max inlet pressure: 10 bar
- Outlet pressure adjustment: 0.3…10 bar
- Regulator type: General purpose
- Relieving: Relieving
- Filter element: Polypropylene (PP)
- Filtration rating: 5 μm
- Drain: Automatic
- Bowl material: Polycarbonate (PC)
- Bowl type: Polymer with guard
- Adjusting knob: Acetal
- Medium: Compressed air
- Body material: Aluminium alloy
- Elastomers: NBR
- Weight: 0.3 kg
