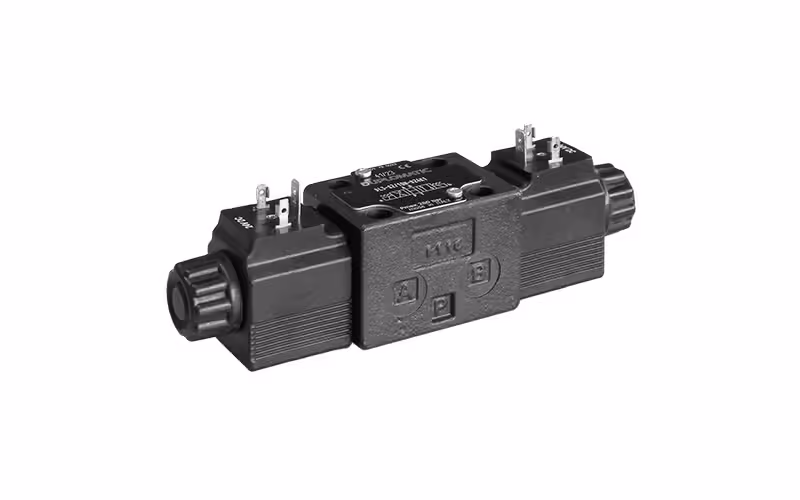

DL3: a direct operated valve for light industrial applications. A wide choice of electrical connections simplifies integration into machines for different markets.
Features
- Max operating pressure 280 bar, max flow 50 l/min
- Subplate mounting ISO 4401-03
- 3-way and 4-way configurations; spring return, spring centering or mechanical detent
- AC or DC supply, interchangeable coils on oil-immersed leak-proof armature tubes
- Cast iron body with generous internal flow paths
- DC version with boot protected manual override as standard
Applications
Power units, mobile and agricultural machinery.
