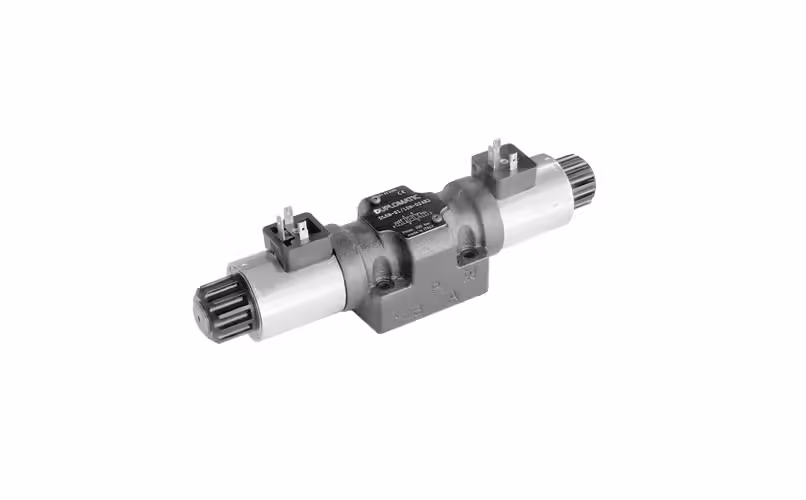

DL5B: a direct acting valve specially designed for agricultural machinery.
Features
- Max operating pressure 320 bar, max flow 125 l/min
- Subplate mounting ISO 4401-05
- 3-way and 4-way configurations, spring return or mechanical detent
- High-strength cast iron body with wide internal passages, wet armature solenoids with interchangeable coils
- DC supply only
- Manual override: push button, boot, mechanical detent
- High corrosion resistance versions and UL Recognized coils
Applications
Agricultural and mobile machinery.
