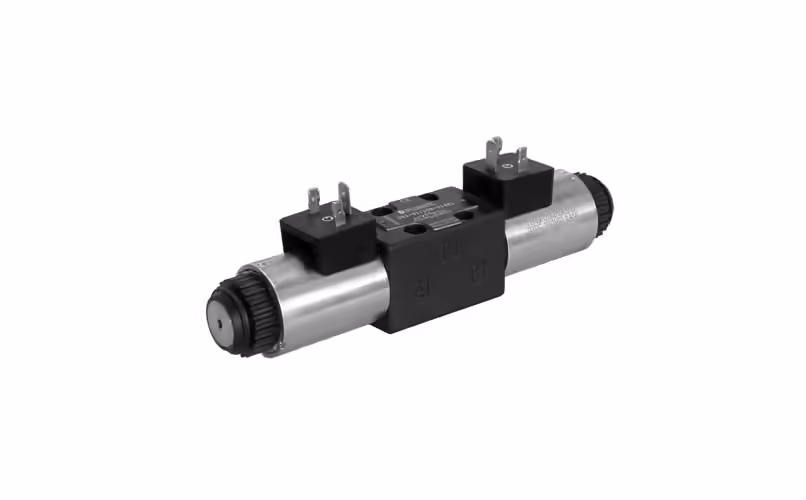

DS2: a solenoid operated spool directional valve for subplate mounting. It controls flow direction in low flow hydraulic circuits.
Features
- Max operating pressure 350 bar, max flow 30 l/min
- Mounting interface ISO 4401-02
- 4-way configuration, spring return or mechanical detent
- High-strength cast iron body with wide internal passages, wet armature solenoids with interchangeable coils
- DC supply
- Manual override: standard, turning knob or boot protected
- Zinc-nickel finish versions for corrosion protection
Applications
Compact power units, clamping devices, auxiliary machine tool circuits.
