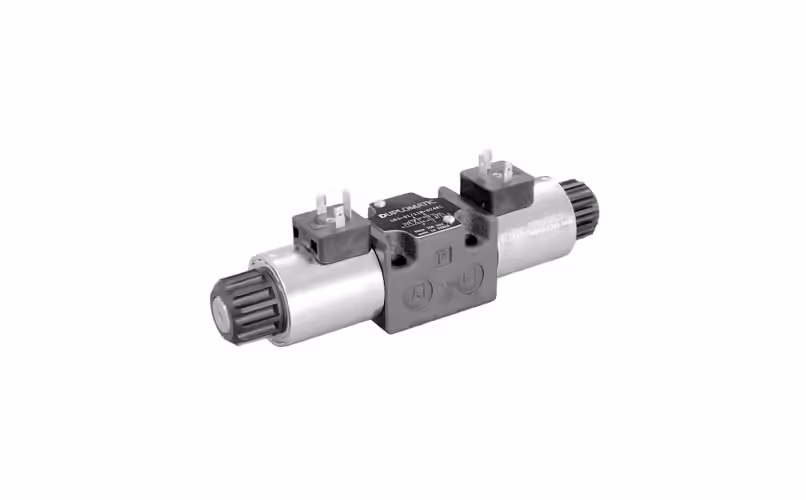

DS3: a direct acting solenoid valve for precise control of fluid direction and flow. The most widely used series for industrial hydraulics.
Features
- Max operating pressure 350 bar, max flow 100 l/min
- Subplate mounting ISO 4401-03
- 3-way and 4-way configurations, spring return or mechanical detent
- High-strength cast iron body with wide internal passages, wet armature solenoids with interchangeable coils
- DC or AC supply; DC solenoids can be fed with AC through connectors with a built-in rectifier bridge
- Manual override: lever, push button, boot, mechanical detent
- UL Recognized coils and high corrosion protection versions
Applications
Industrial power units, presses, machine tools, in-house built hydraulic manifolds.
