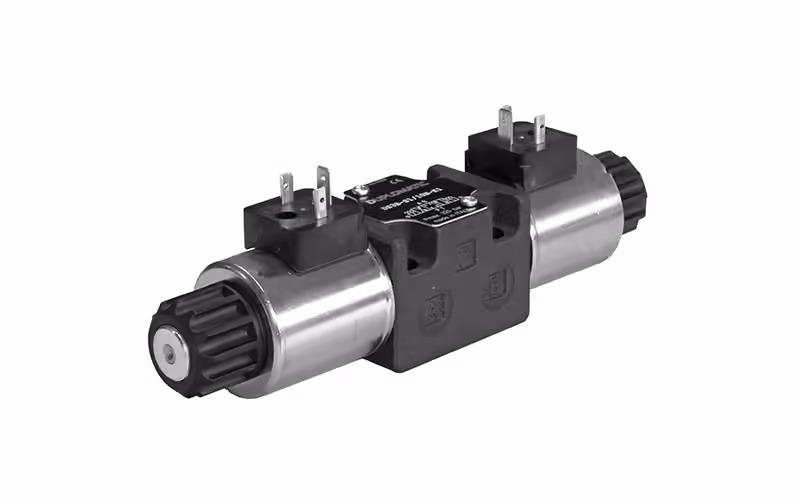

DS3B: a direct acting solenoid directional valve with DC supply.
Features
- Max operating pressure 350 bar, max flow 80 l/min
- Subplate mounting ISO 4401-03
- 3-way and 4-way configurations, spring return or mechanical detent
- High-strength cast iron body with wide internal passages, wet armature solenoids with interchangeable coils
- Manual override standard or boot protected
- Zinc-nickel finish: salt spray resistance up to 120 hours
Applications
Mobile machinery and equipment working in aggressive environments.
