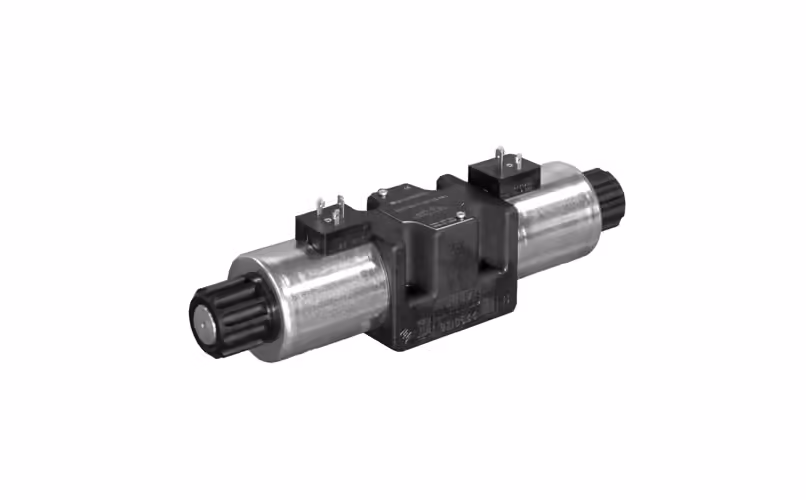

DS5: a solenoid operated spool valve for medium flows.
Features
- Max operating pressure 320 bar, max flow 150 l/min
- Subplate mounting ISO 4401-05
- 3-way and 4-way configurations, spring return or mechanical detent
- High-strength cast iron body with wide internal passages, wet armature solenoids with interchangeable coils
- DC or AC supply; DC solenoids can be fed with AC through connectors with a built-in rectifier bridge
- Version with Y port for external drain
- Fixed or adjustable soft-shifting
Applications
Presses, industrial power units, medium power drives.
