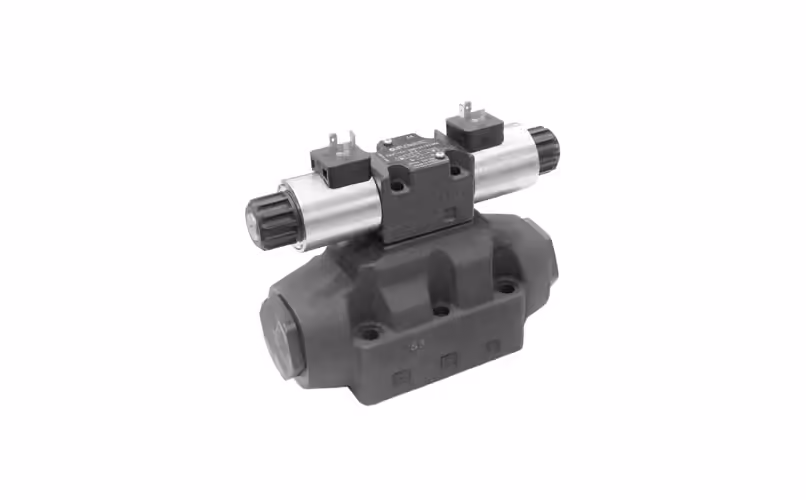

DSP7: a directional valve for high flows. The pilot valve shifts the main spool with oil pressure, so the solenoid stays compact even on a large valve.
Features
- Max operating pressure 350 bar, high pressure version up to 420 bar
- Max flow 300 l/min
- Subplate mounting ISO 4401-07
- Pilot operated, solenoid or hydraulic actuation (series DSC7)
- DC or AC supply; DC solenoids can be fed with AC through connectors with a built-in rectifier bridge
- Manual override standard or boot protected
- Versions with high IP rating and corrosion resistance
Applications
Presses, large power units, metallurgical and marine equipment.
