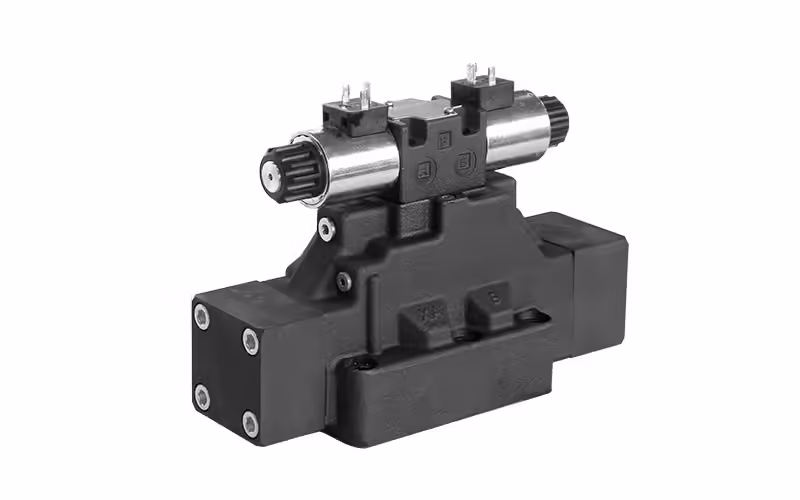

DSP8: a directional valve for high flows. The pilot valve shifts the main spool with oil pressure, so the solenoid stays compact even on a large valve.
Features
- Max operating pressure 350 bar, high pressure version up to 420 bar
- Max flow 600 l/min
- Subplate mounting ISO 4401-08
- Pilot operated, solenoid or hydraulic actuation (series DSC8)
- DC or AC supply; DC solenoids can be fed with AC through connectors with a built-in rectifier bridge
- Manual override standard or boot protected
- Versions with high IP rating and corrosion resistance
- Replaces the discontinued E5P4 valves
Applications
Presses, large power units, metallurgical and marine equipment.
