Розподільник гідравлічний Duplomatic DS(P)M з контролем положення золотника, ISO 4401-03…10, 350 бар
SKU: VLV-DSPM Brand:

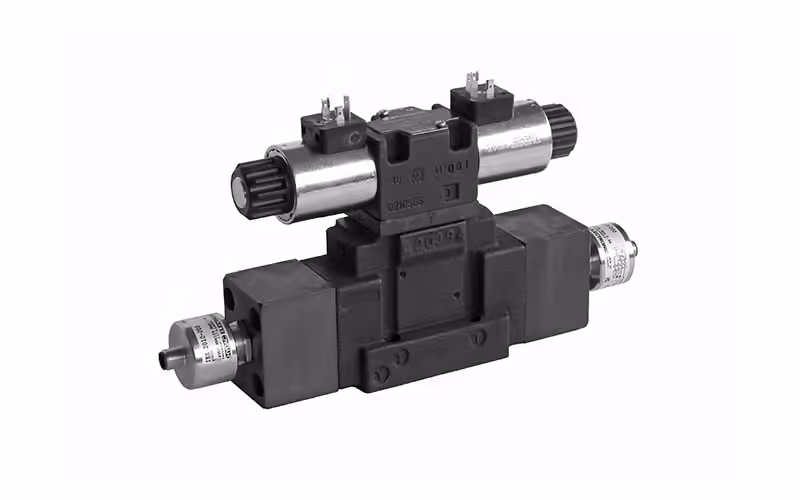

Hydraulic directional valve Duplomatic DS(P)M with spool position monitoring, ISO 4401-03…10, 350 bar

Directional valves with spool position sensors for safety circuits, TÜV certified.

ManufacturerDuplomatic
Series
ActuationElectro-hydraulic (pilot), Solenoid
Valve typeSpool
SizeCETOP P05, ISO 4401-03, ISO 4401-05, ISO 4401-07, ISO 4401-08, ISO 4401-10
MountingSubplate
Max operating pressure350 bar
Flow rate1100 l/min
CertificationTÜV
Catalog number41505
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

The DS(P)M family verifies the actual spool position and sends a signal to the control system. Direct acting: DS3M, DS5M; pilot operated: DSP5RM, DSP5M, DSP7M, DSP8M, DSP10M.

Features

  • Max operating pressure 350 bar, max flow 1100 l/min
  • Sizes ISO 4401-03 to ISO 4401-10, subplate mounting
  • One or two sensors: spool movement or rest and operating position monitoring
  • DC supply
  • TÜV Italia (TÜV SÜD Group) certificate for use in safety-related circuits

Applications

Presses, machinery with functional safety requirements, circuits with mandatory diagnostics.

Specifications

ManufacturerDuplomatic
Series
ActuationElectro-hydraulic (pilot), Solenoid
Valve typeSpool
SizeCETOP P05, ISO 4401-03, ISO 4401-05, ISO 4401-07, ISO 4401-08, ISO 4401-10
MountingSubplate
Max operating pressure350 bar
Flow rate1100 l/min
CertificationTÜV
Catalog number41505
