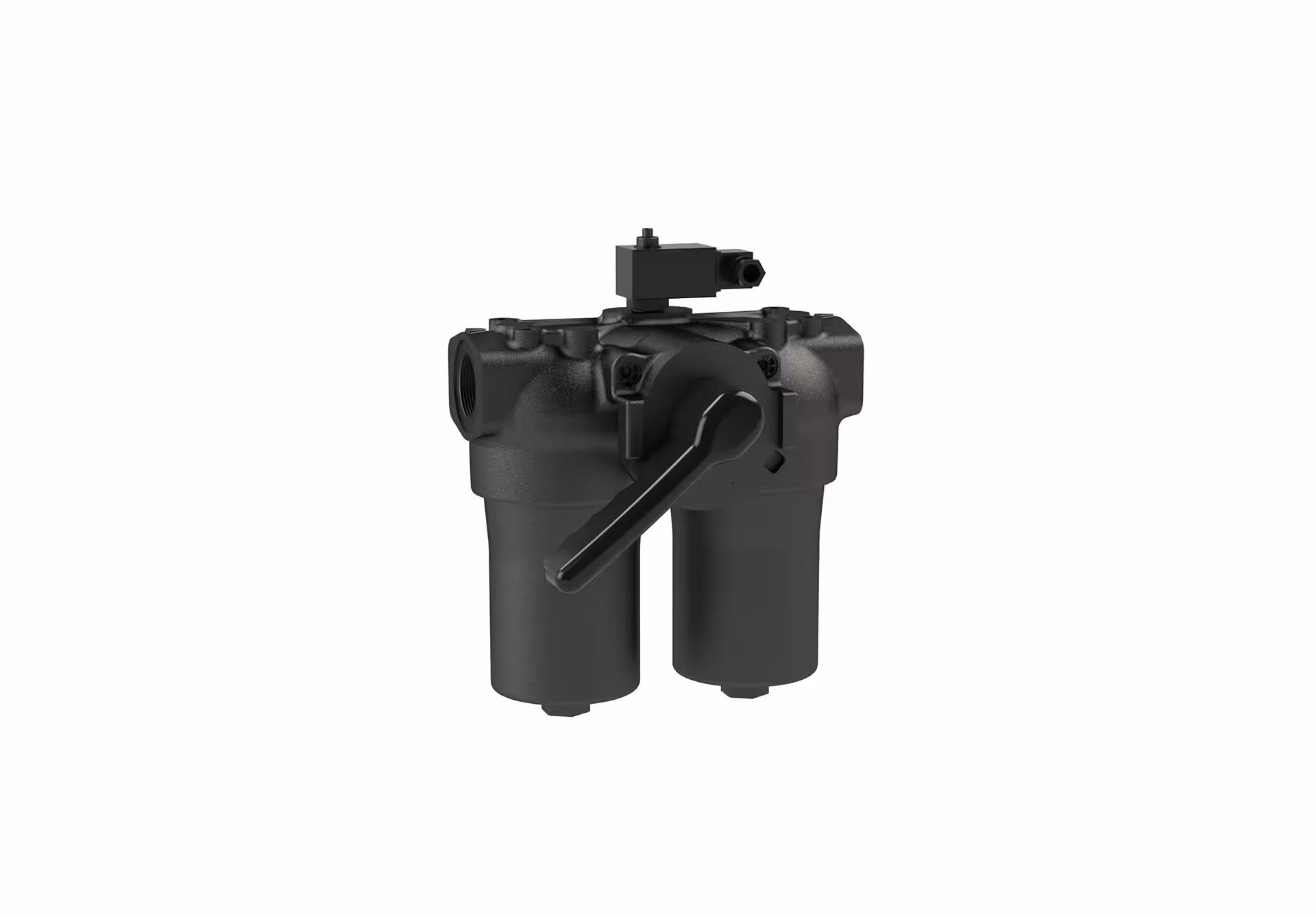

FDD040: a duplex filter with two parallel housings. A three-way valve switches the flow to the second housing, so the element can be changed while running.
Features
- Sizes 040…100: max operating pressure 63 bar
- Sizes 160…400: max operating pressure 32 bar
- Connection ports G1 (040…100) or G1 1/2 (160…400)
- Filter head and bowl: aluminium alloy
- Seals NBR
Series housings
FDD040XD040, FDD040XD063, FDD040XD100, FDD040XD160, FDD040XD250, FDD040XD400.
Applications
Continuous production lines where stopping for a filter change is unacceptable.
