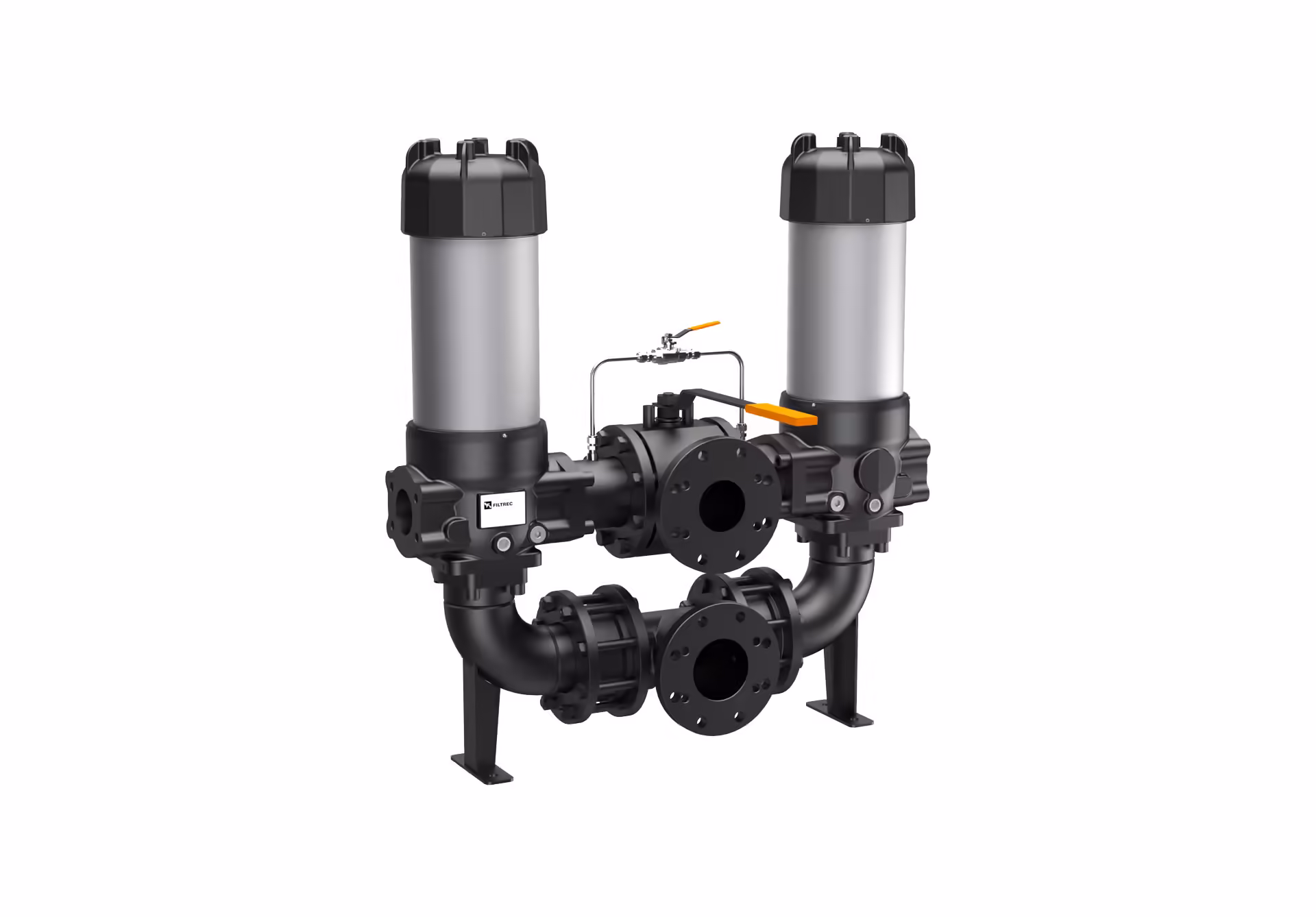

FLRD-R4: the duplex version of the FLR series with a welded manifold, a three-way valve and check valves.
Features
- Max operating pressure 16 bar
- Connection DN80 with 3″ SAE 3000 flange or DN100 with 4″ SAE 3000 flange
- Head and bowl: anodized aluminium, body: anticorodal aluminium
- Welded manifold: carbon steel, three-way valve: steel
- Seals NBR, FKM on request
- Bypass: no bypass or 3 bar setting
Series housings
FLRD-R432-F10, FLRD-R432-F12, FLRD-R434-F10, FLRD-R434-F12.
Applications
Continuous oil cleaning systems where a service stop is unacceptable.
