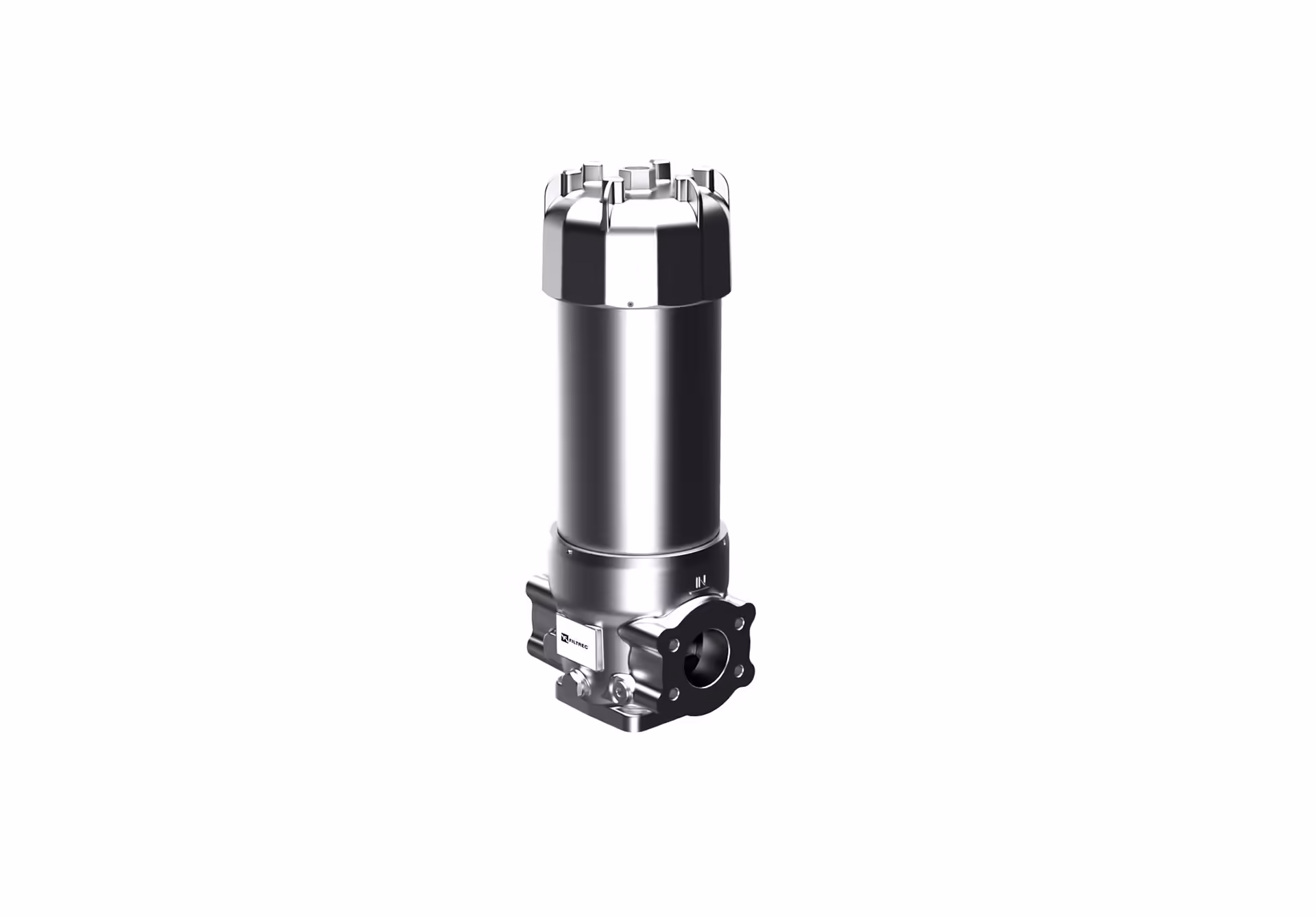

FLR-RHR: a high flow inline filter for filtration systems and hydraulic oil cleaning loops. Available in 90° angled and inline versions.
Features
- Max operating pressure 30 bar, burst pressure 90 bar
- Fatigue rating: 106 cycles 0…30 bar
- Connection: 3″…4″ SAE 3000 flange
- Head and bowl: anodized aluminium, body: anticorodal aluminium
- Seals NBR, FKM on request
- Bypass built into the element: no bypass, 1, 3, 4 or 6 bar
Series housings
FLR-RHR1300 and FLR-RHR2600 in F10 and F12 versions, 90° angled and inline.
Applications
Stationary oil cleaning systems of large hydraulic units and turbines.
