Напірний гідравлічний фільтр Filtrec серії FH420-XD
SKU: FLT-FH420-XD Brand:

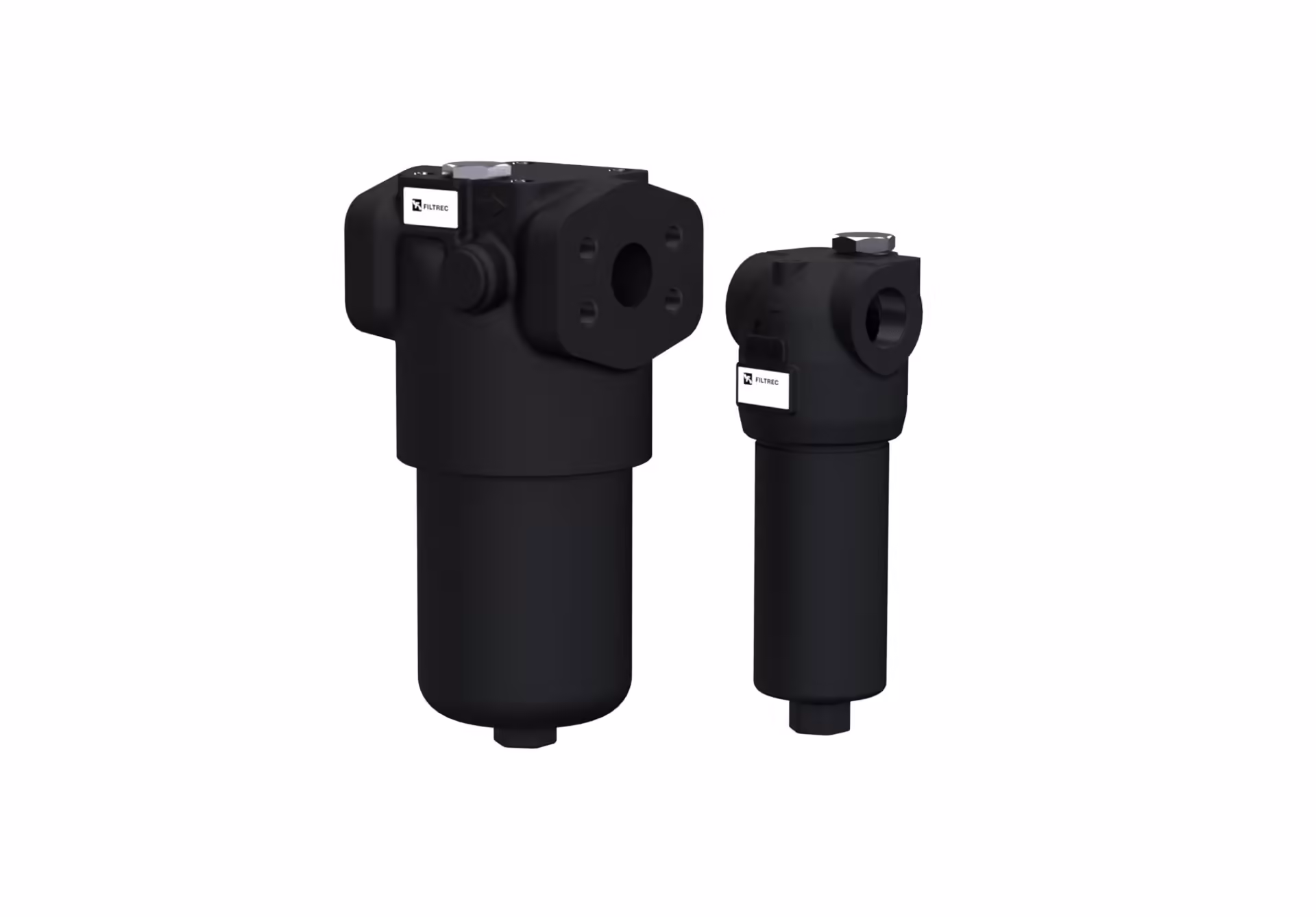

Hydraulic pressure filter Filtrec FH420-XD, 420 bar, high flow

In line filter rated to 420 bar with XD elements in sizes 040…400 for high flow rates and longer element life.

ManufacturerFiltrec
Series
Filter typeIn line
Max operating pressure420 bar
Port connection
VersionFlanged, Threaded
Housing materialCast iron / carbon steel
Seal materialNBR (FKM on request)
Bypass valve6 bar, ABF + RF valve, ABF valve
Housing codesFH420XD040, FH420XD063, FH420XD100, FH420XD160, FH420XD250, FH420XD400.
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

FH420-XD: the FH420 version with larger XD filter elements. The increased filtration area lowers the pressure drop and extends the service interval.

Features

  • Max operating pressure up to 420 bar, burst pressure 1260 bar
  • Fatigue rating: 106 cycles 0…420 bar
  • Threaded connections G1/2…G1 1/2
  • Flanged connections 1 1/4″…1 1/2″ SAE J518-6000
  • Head: cast iron, bowl: carbon steel
  • Bypass valve 6 bar, ABF valve or ABF + RF valve

Series housings

FH420XD040, FH420XD063, FH420XD100, FH420XD160, FH420XD250, FH420XD400.

Applications

Large power units and press equipment with high oil flow.

Specifications

ManufacturerFiltrec
Series
Filter typeIn line
Max operating pressure420 bar
Port connection
VersionFlanged, Threaded
Housing materialCast iron / carbon steel
Seal materialNBR (FKM on request)
Bypass valve6 bar, ABF + RF valve, ABF valve
Housing codesFH420XD040, FH420XD063, FH420XD100, FH420XD160, FH420XD250, FH420XD400.
