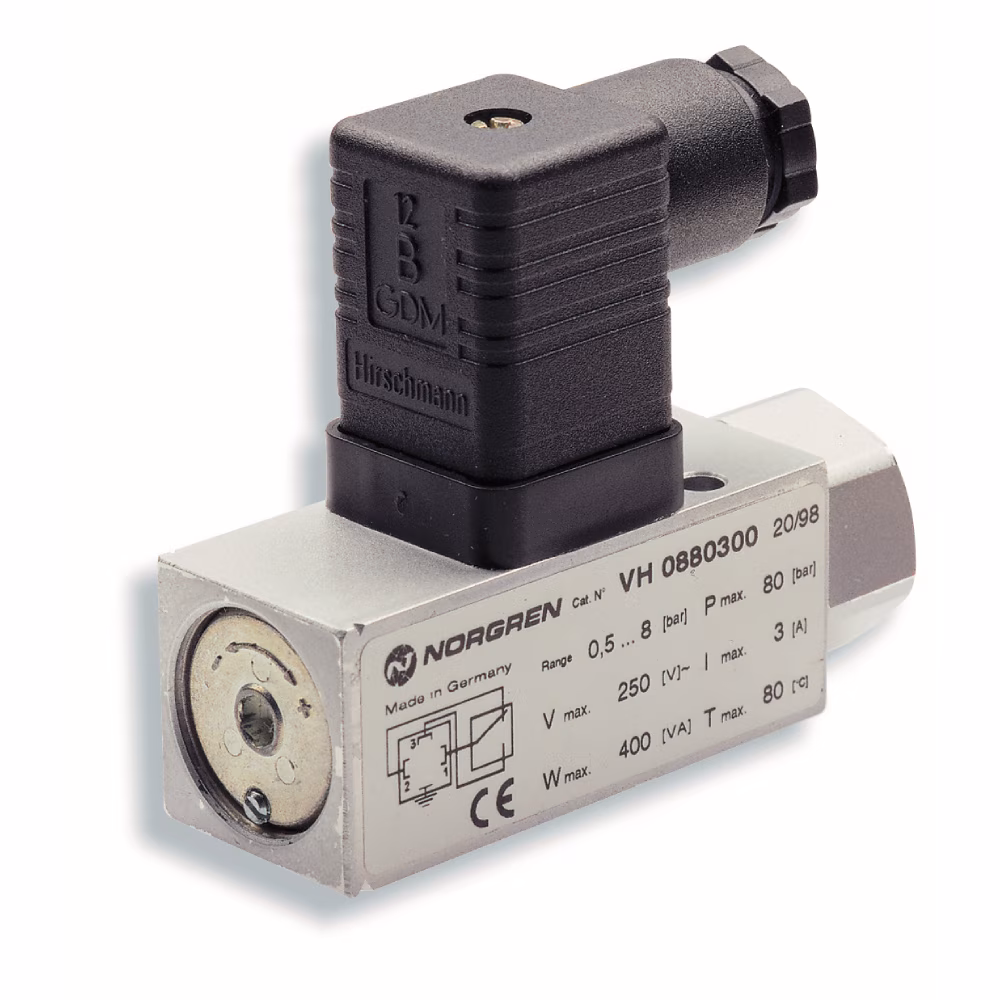

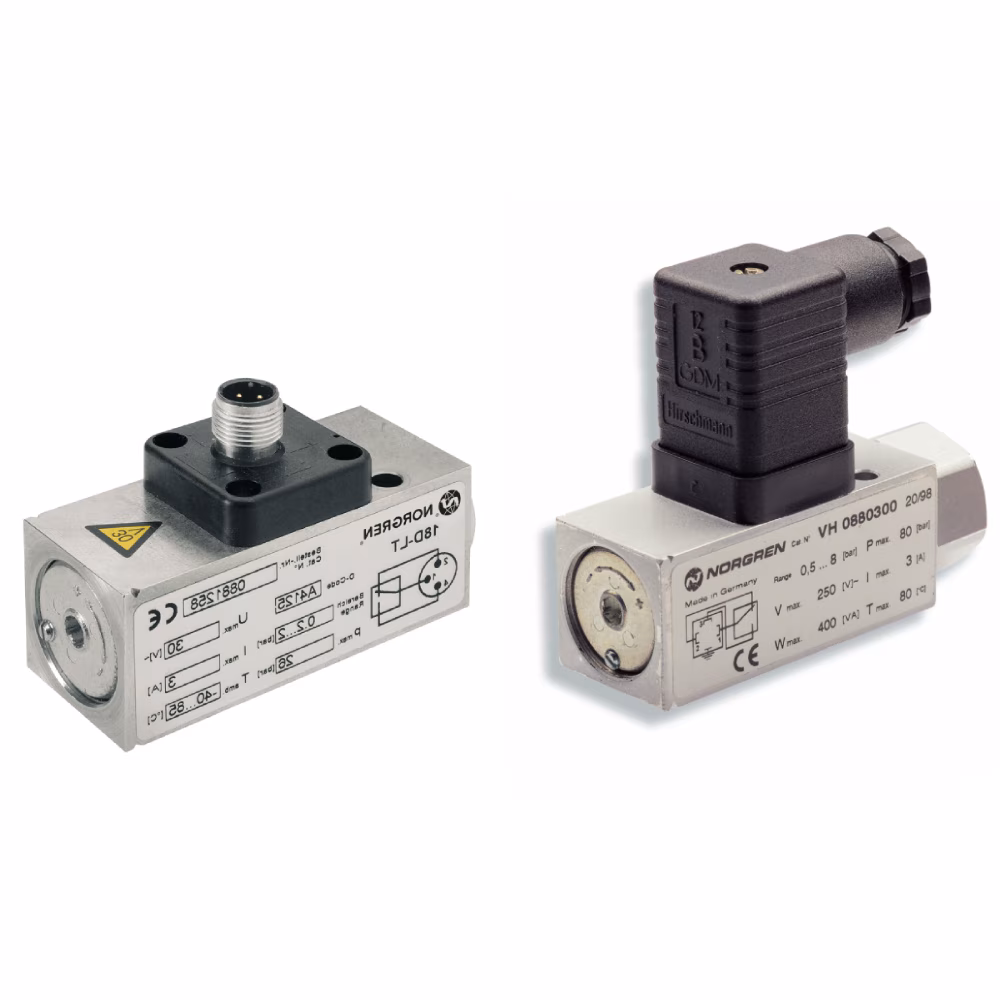

IMI Norgren 18D is an electromechanical pressure switch for industrial hydraulic systems. It works with neutral self-lubricating fluids – hydraulic and lubricating oil, light fuel. The actuator is a piston with a soft seal, which keeps switching stable even at a high cycle rate.
Features
- Working pressure range 10…160 bar (145…2320 psi)
- Fixed hysteresis: 11 bar at the bottom and 17 bar at the top of the range
- SPDT microswitch with gold-plated contacts, UL and CSA certified
- Mechanical life – 107 cycles, up to 100 cycles/min
- Vibration resistance 15 g, repeatability ±4 %
- Switching point adjusted by a lockable screw – possible even during operation
- Medium viscosity up to 1000 mm²/s
- Any mounting position; weight 0.2 kg
Applications
Pressure monitoring in the hydraulic circuits of presses, machine tools, mobile equipment and power units: signalling that a set pressure has been reached, pump protection, cycle interlock on pressure loss.
Switching capacity
Maximum continuous current 0.1 A at 30/48/125/250 V (AC) and 30 V (DC), minimum voltage 6 V. Electrical life – over 2×105 cycles. Inductive loads require a spark-suppression element (a diode or an RC network).
Accessories
- DIN EN 175301-803 form A connector – 0570110 (supplied)
- Restrictor nipple – 0574767 (brass) / 0550083 (stainless steel)
- Pulsation damper – 0574773 (brass) / 0553258 (stainless steel)
- Protective cap – 0554737
