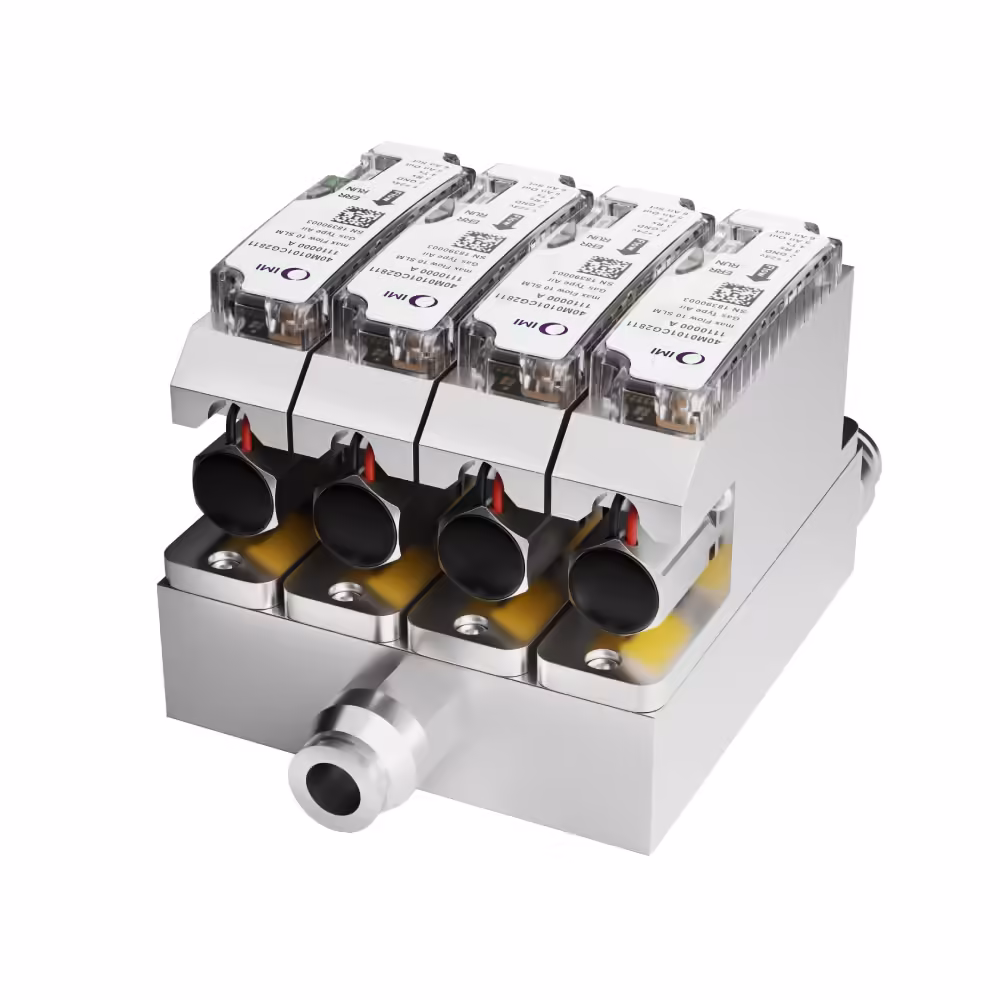

Контролер масової витрати IMI Norgren FLATREG 8580201CJ58113110000, 0…20 л/хв, G1/4
SKU: 8580201CJ58113110000 Brand:

Mass flow controller IMI Norgren FLATREG 8580201CJ58113110000, 0…20 l/min, G1/4

IMI Norgren mass flow controller: accurately maintains the set flow of compressed air or gas regardless of pressure and temperature fluctuations. 0…5 V control signal, 24 V DC supply, JST connector. FLATREG: 0…20 l/min range, G1/4 port, 0…10 bar, flat body for manifold mounting.

ManufacturerIMI Norgren
TypeMass flow controllers
Port connection
Max operating pressure10 bar
Flow rate20 l/min
Housing materialAluminium
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

IMI Norgren mass flow controller: accurately maintains the set flow of compressed air or gas regardless of pressure and temperature fluctuations. 0…5 V control signal, 24 V DC supply, JST connector. FLATREG: 0…20 l/min range, G1/4 port, 0…10 bar, flat body for manifold mounting.

Specifications

  • Connection: G1/4
  • Operating pressure: 0…10 bar
  • Flow: 20 l/min
  • Operating temperature: 10…50 °C
  • Cv flow coefficient: 0.175 gpm
  • Medium: Compressed air, Gases
  • Body material: Aluminium
  • Seals: FPM
  • Kv value: 2.5 m3/h
  • Voltage: 24 V DC
  • Control signal: 0…5 V
  • Electrical connection: JST connector BM06B-GHS-TBT

Specifications

ManufacturerIMI Norgren
TypeMass flow controllers
Port connection
Max operating pressure10 bar
Flow rate20 l/min
Housing materialAluminium
