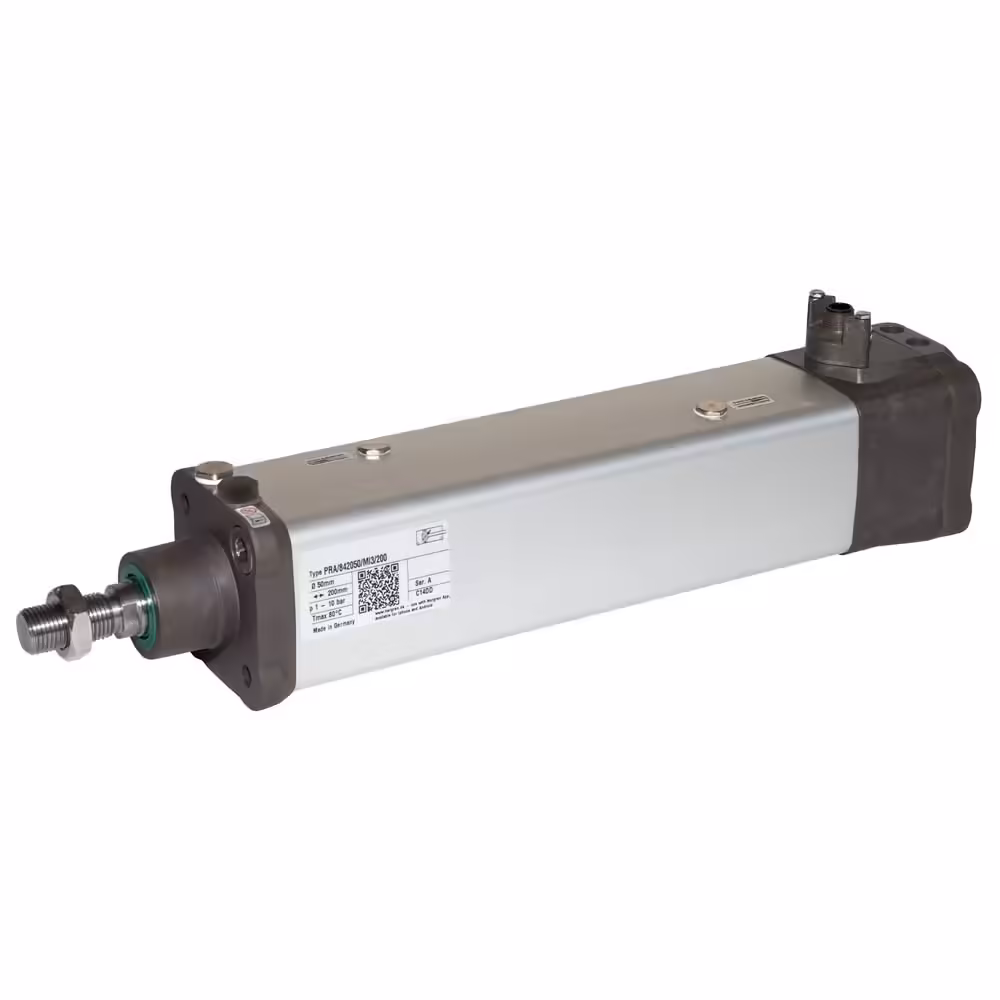

Пневмоциліндр IMI Norgren PRA-842040-MI3-50 Cleanline, з герконом, Ø40 мм, хід 50 мм
SKU: PRA-842040-MI3-50 Brand:

Pneumatic cylinder IMI Norgren PRA-842040-MI3-50, Cleanline, with reed switch, Ø40 mm, 50 mm stroke

Cleanline, with reed switch double acting pneumatic cylinder: 40 mm bore, 50 mm stroke, G1/8 port, operating pressure 1…10 bar, 14…145 psi. Conforms to ISO 15552.

ManufacturerIMI Norgren
TypeCleanline hygienic cylinders
Port connection
Max operating pressure10 bar
Protection class
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

Cleanline, with reed switch double acting pneumatic cylinder: 40 mm bore, 50 mm stroke, G1/8 port, operating pressure 1…10 bar, 14…145 psi. Conforms to ISO 15552.

Specifications

  • Connection: G1/8
  • Operating pressure: 1…10 bar
  • Operating temperature: -20…80 °C
  • Operation: Double acting
  • Bore: 40 mm
  • Stroke: 50 mm
  • Theoretical force: 754 N
  • Cushioning: Adjustable cushioning
  • Piston: Magnetic
  • Barrel: Anodised aluminium
  • Piston rod material: Stainless steel (martensitic)
  • Piston rod thread: Male thread
  • Piston seals: Polyurethane (PU)
  • Piston rod seals: Polyurethane (PU)
  • Position sensor: Reed
  • Medium: Compressed air
  • Electrical connection: M12 x 1, 4 pin
  • IP rating: IP67
  • Standard: ISO 15552

Specifications

ManufacturerIMI Norgren
TypeCleanline hygienic cylinders
Port connection
Max operating pressure10 bar
Protection class
