Пневмоциліндр IMI Norgren PRA-842050-MI4-EX-200 Cleanline, з безконтактним датчиком, Ø50 мм, хід 200 мм, ATEX
SKU: PRA-842050-MI4-EX-200 Brand:

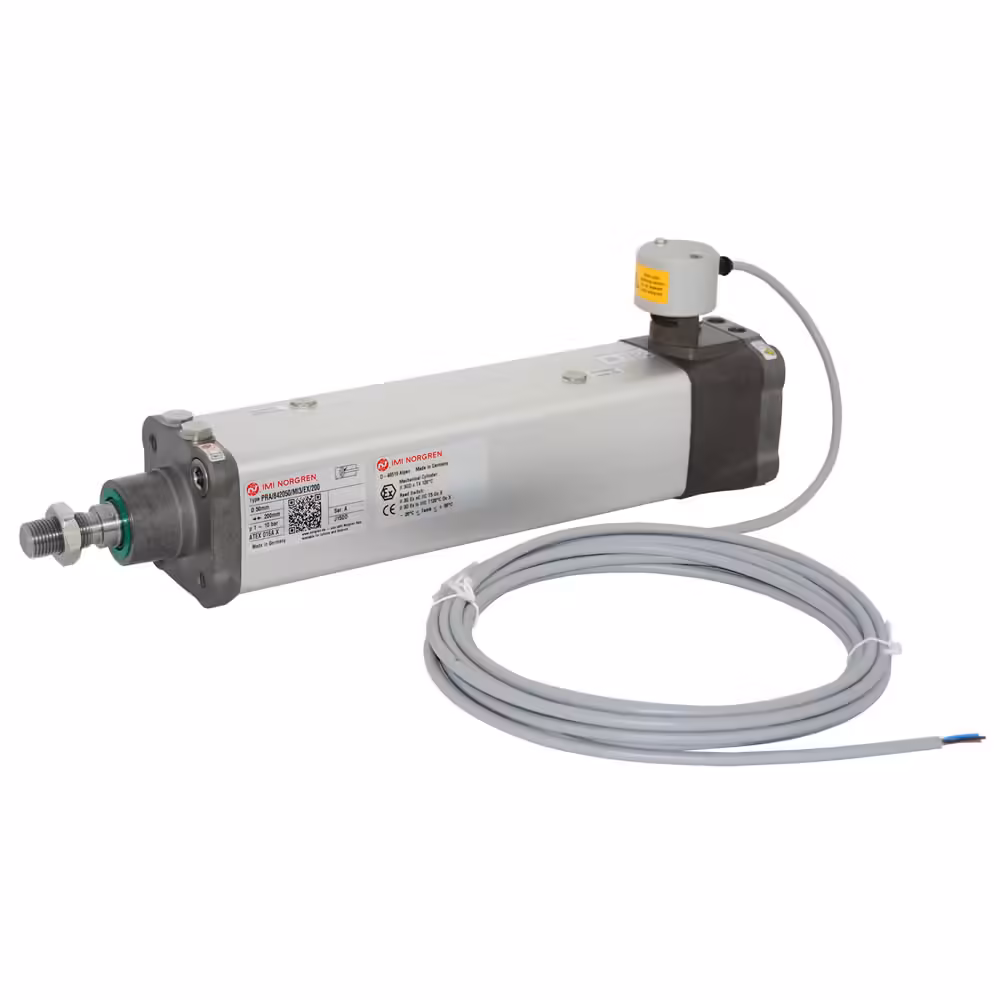

Pneumatic cylinder IMI Norgren PRA-842050-MI4-EX-200, Cleanline, with solid state sensor, Ø50 mm, 200 mm stroke, ATEX

Cleanline, with solid state sensor double acting pneumatic cylinder: 50 mm bore, 200 mm stroke, G1/8 port, operating pressure 1…10 bar, 14…145 psi. Conforms to ISO 15552. ATEX certified for hazardous areas.

ManufacturerIMI Norgren
TypeCleanline hygienic cylinders
Port connection
Max operating pressure10 bar
Protection class
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

Cleanline, with solid state sensor double acting pneumatic cylinder: 50 mm bore, 200 mm stroke, G1/8 port, operating pressure 1…10 bar, 14…145 psi. Conforms to ISO 15552. ATEX certified for hazardous areas.

Specifications

  • Connection: G1/8
  • Operating pressure: 1…10 bar
  • Operating temperature: -20…80 °C
  • Operation: Double acting
  • Bore: 50 mm
  • Stroke: 200 mm
  • Theoretical force: 1178 N
  • Cushioning: Adjustable cushioning
  • Piston: Magnetic
  • Barrel: Anodised aluminium
  • Piston rod material: Stainless steel (martensitic)
  • Piston rod thread: Male thread
  • Piston seals: Polyurethane (PU)
  • Piston rod seals: Polyurethane (PU)
  • Position sensor: Solid state
  • Medium: Compressed air
  • Electrical connection: M12 x 1, 4 pin
  • IP rating: IP67
  • Standard: ISO 15552

Specifications

ManufacturerIMI Norgren
TypeCleanline hygienic cylinders
Port connection
Max operating pressure10 bar
Protection class
