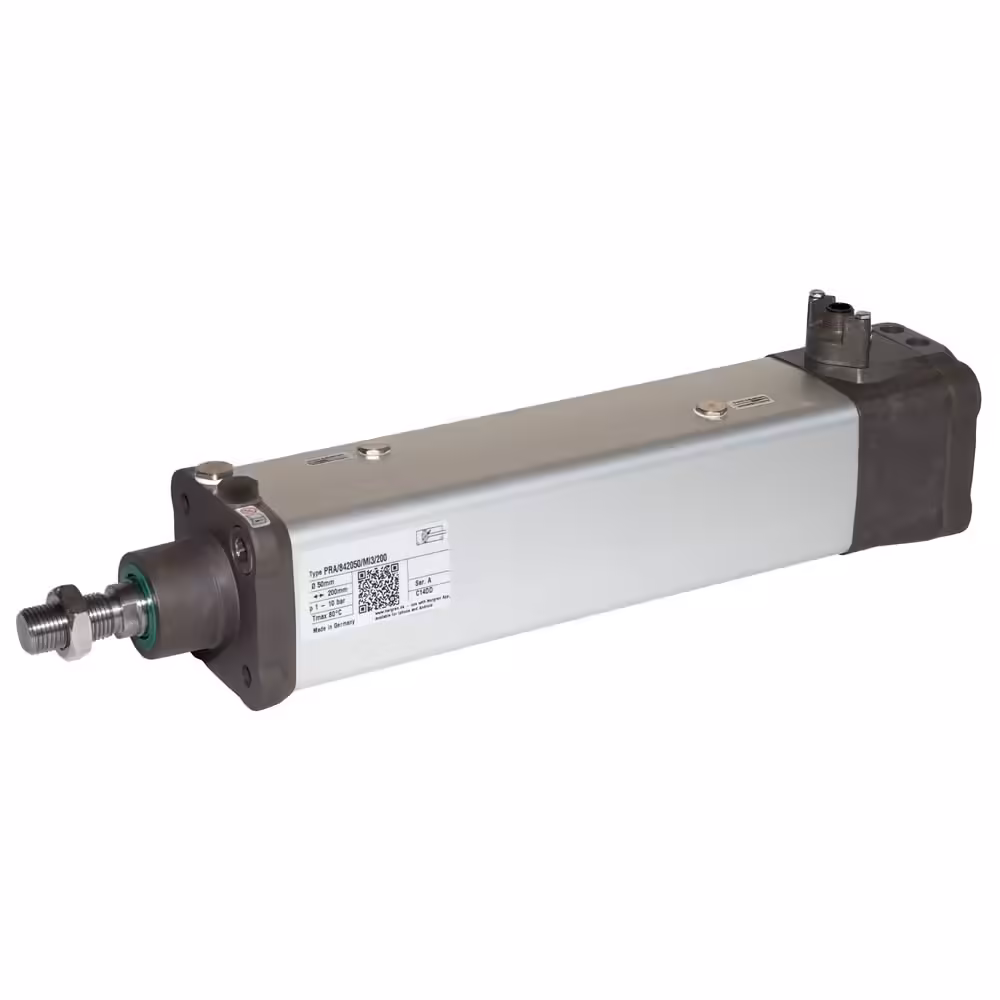

Пневмоциліндр IMI Norgren PRA-842063-MI3-250 Cleanline, з герконом, Ø63 мм, хід 250 мм
SKU: PRA-842063-MI3-250 Brand:

Pneumatic cylinder IMI Norgren PRA-842063-MI3-250, Cleanline, with reed switch, Ø63 mm, 250 mm stroke

Cleanline, with reed switch double acting pneumatic cylinder: 63 mm bore, 250 mm stroke, G1/4 port, operating pressure 1…10 bar, 14…145 psi. Conforms to ISO 15552.

ManufacturerIMI Norgren
TypeCleanline hygienic cylinders
Port connection
Max operating pressure10 bar
Protection class
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

Cleanline, with reed switch double acting pneumatic cylinder: 63 mm bore, 250 mm stroke, G1/4 port, operating pressure 1…10 bar, 14…145 psi. Conforms to ISO 15552.

Specifications

  • Connection: G1/4
  • Operating pressure: 1…10 bar
  • Operating temperature: -20…80 °C
  • Operation: Double acting
  • Bore: 63 mm
  • Stroke: 250 mm
  • Theoretical force: 1870 N
  • Cushioning: Adjustable cushioning
  • Piston: Magnetic
  • Barrel: Anodised aluminium
  • Piston rod material: Stainless steel (martensitic)
  • Piston rod thread: Male thread
  • Piston seals: Polyurethane (PU)
  • Piston rod seals: Polyurethane (PU)
  • Position sensor: Reed
  • Medium: Compressed air
  • Electrical connection: M12 x 1, 4 pin
  • IP rating: IP67
  • Standard: ISO 15552

Specifications

ManufacturerIMI Norgren
TypeCleanline hygienic cylinders
Port connection
Max operating pressure10 bar
Protection class
