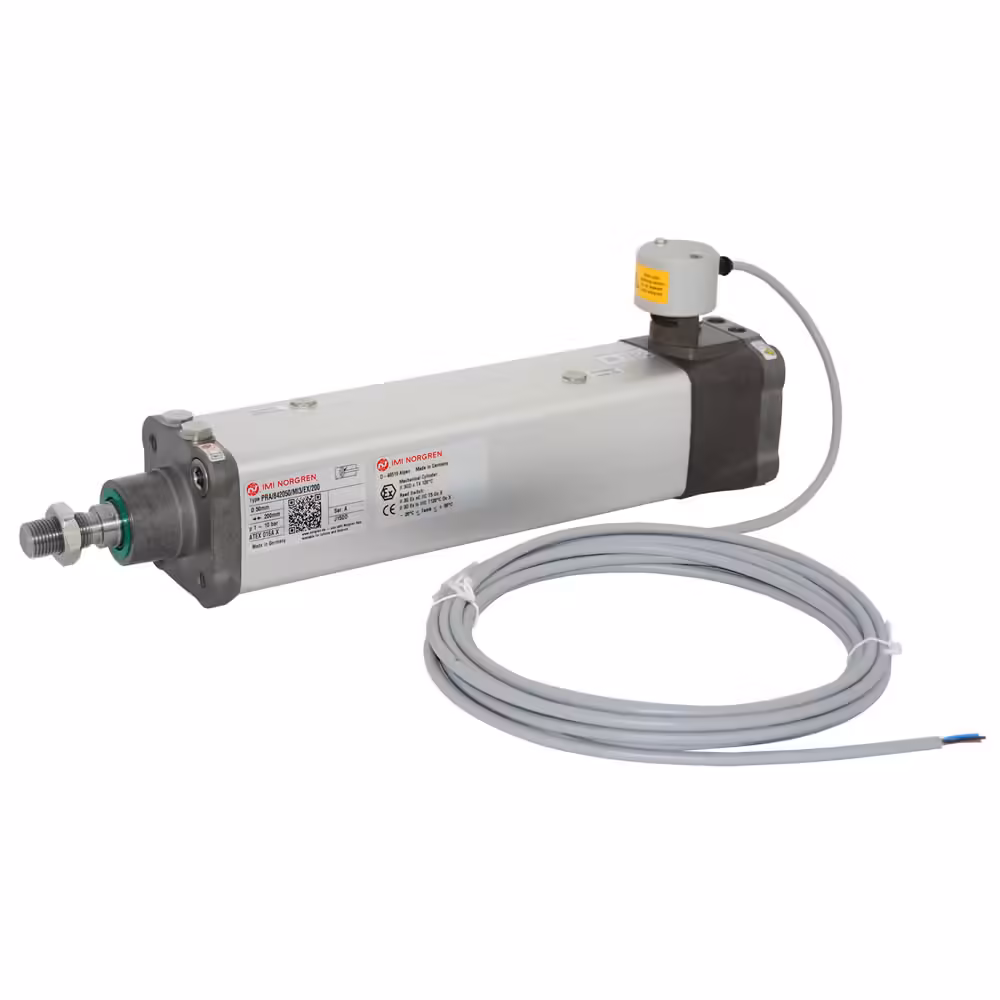

Пневмоциліндр IMI Norgren PRA-842080-MI3-EX-160 Cleanline, з герконом, Ø80 мм, хід 160 мм, ATEX
SKU: PRA-842080-MI3-EX-160 Brand:

Pneumatic cylinder IMI Norgren PRA-842080-MI3-EX-160, Cleanline, with reed switch, Ø80 mm, 160 mm stroke, ATEX

Cleanline, with reed switch double acting pneumatic cylinder: 80 mm bore, 160 mm stroke, G1/4 port, operating pressure 1…10 bar, 14…145 psi. Conforms to ISO 15552. ATEX certified for hazardous areas.

ManufacturerIMI Norgren
TypeCleanline hygienic cylinders
Port connection
Max operating pressure10 bar
Protection class
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

Cleanline, with reed switch double acting pneumatic cylinder: 80 mm bore, 160 mm stroke, G1/4 port, operating pressure 1…10 bar, 14…145 psi. Conforms to ISO 15552. ATEX certified for hazardous areas.

Specifications

  • Connection: G1/4
  • Operating pressure: 1…10 bar
  • Operating temperature: -20…80 °C
  • Operation: Double acting
  • Bore: 80 mm
  • Stroke: 160 mm
  • Theoretical force: 3016 N
  • Cushioning: Adjustable cushioning
  • Piston: Magnetic
  • Barrel: Anodised aluminium
  • Piston rod material: Stainless steel (martensitic)
  • Piston rod thread: Male thread
  • Piston seals: Polyurethane (PU)
  • Piston rod seals: Polyurethane (PU)
  • Position sensor: Reed
  • Medium: Compressed air
  • Electrical connection: M12 x 1, 4 pin
  • IP rating: IP67
  • Standard: ISO 15552

Specifications

ManufacturerIMI Norgren
TypeCleanline hygienic cylinders
Port connection
Max operating pressure10 bar
Protection class
