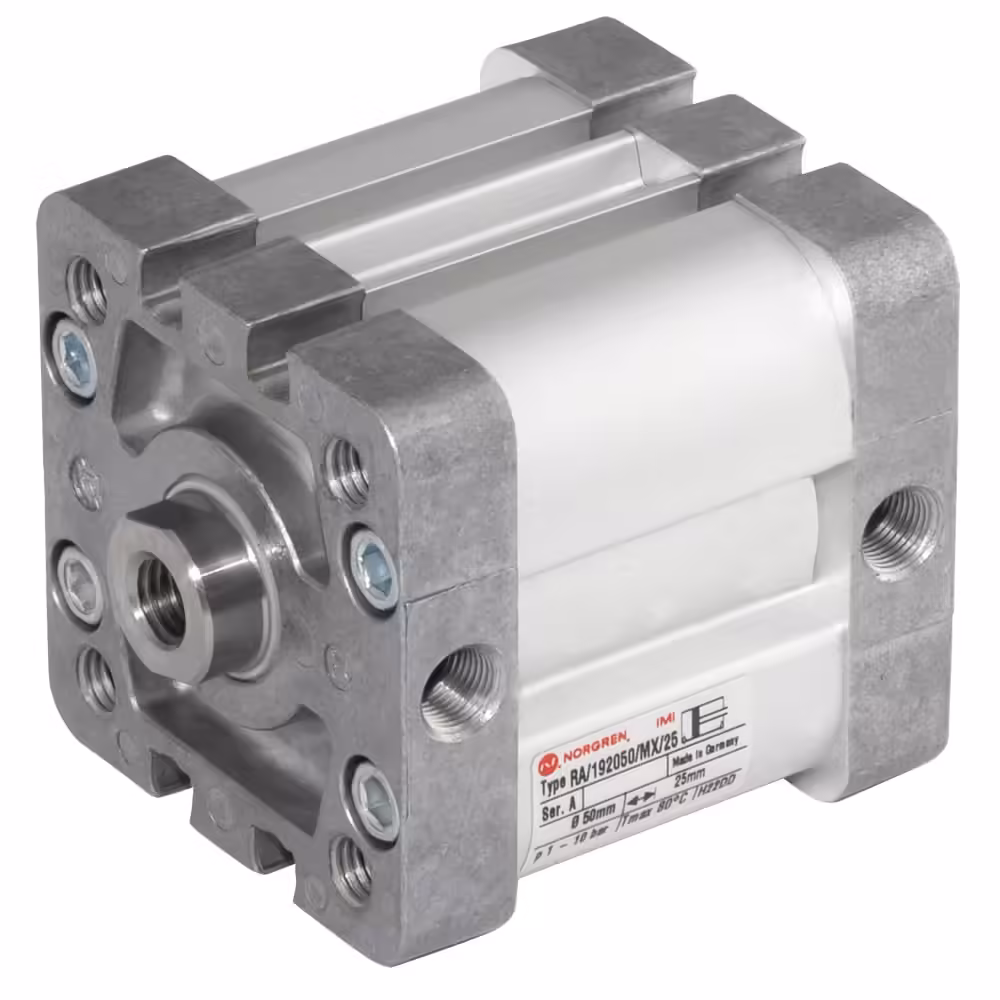

Пневмоциліндр IMI Norgren RA-192125-MX-EX-50 компактний ISO, Ø125 мм, хід 50 мм, ATEX
SKU: RA-192125-MX-EX-50 Brand:

Pneumatic cylinder IMI Norgren RA-192125-MX-EX-50, ISO compact, Ø125 mm, 50 mm stroke, ATEX

ISO compact double acting pneumatic cylinder: 125 mm bore, 50 mm stroke, G1/4 port, operating pressure 1…10 bar, 15…145 psi. Conforms to ISO 21287. ATEX certified for hazardous areas.

ManufacturerIMI Norgren
TypeCompact cylinders
Port connection
Max operating pressure10 bar
Full specification table below on this page
Request a quote +38 (032) 259-10-60

Special pricing for regular customers

Detailed description

ISO compact double acting pneumatic cylinder: 125 mm bore, 50 mm stroke, G1/4 port, operating pressure 1…10 bar, 15…145 psi. Conforms to ISO 21287. ATEX certified for hazardous areas.

Specifications

  • Connection: G1/4
  • Operating pressure: 1…10 bar
  • Operating temperature: -5…60 °C
  • Operation: Double acting
  • Bore: 125 mm
  • Stroke: 50 mm
  • Theoretical force: 7363 N
  • Cushioning: Buffer cushioning
  • Piston: Magnetic
  • Barrel: Anodised aluminium
  • Piston rod material: Stainless steel (martensitic)
  • Piston rod thread: Female thread
  • Piston seals: NBR
  • Piston rod seals: Polyurethane (PU)
  • Medium: Compressed air
  • Standard: ISO 21287

Specifications

ManufacturerIMI Norgren
TypeCompact cylinders
Port connection
Max operating pressure10 bar
