SKU: V61B513A-A2000 Brand:

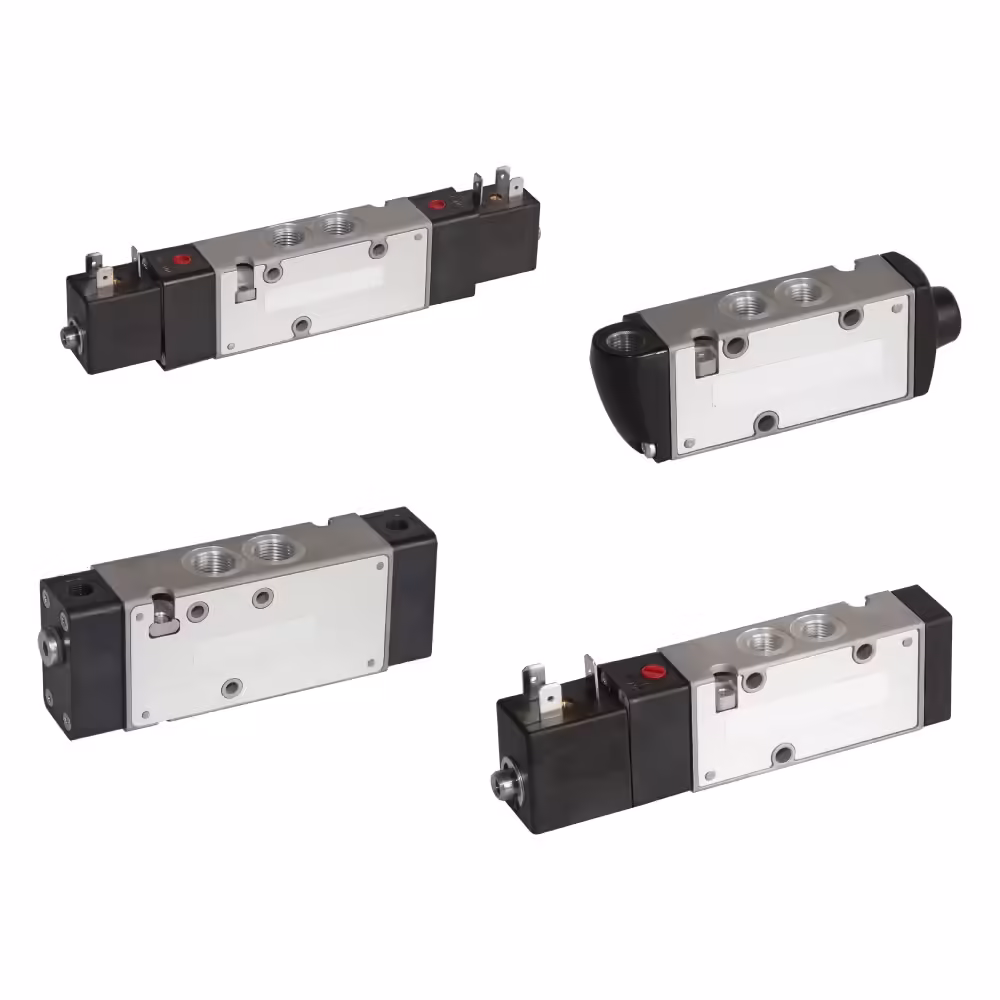

Solenoid valve IMI Norgren V61B513A-A2000, 5/2, G1/4

V61 series inline solenoid pilot valve: 5/2, G1/4, up to 1300 l/min. Low power and proven long life sealing system.

ManufacturerIMI Norgren
Series
TypeDirectional valves
Port connection
Max operating pressure10 bar
Flow rate1300 l/min
Housing materialAluminium
Protection class
Full specification table below on this page

Special pricing for regular customers

Detailed description

V61 series inline solenoid pilot valve: 5/2, G1/4, up to 1300 l/min. Low power and proven long life sealing system.

Specifications

  • Connection: G1/4
  • Function: 5/2
  • Actuation: solenoid pilot / air spring return
  • Operating pressure: 2…10 bar
  • Flow: 1300 l/min
  • Operating temperature: -10…50 °C
  • Medium: Compressed air
  • Body material: Aluminium
  • Seals: NBR, FPM
  • Electrical connection: Without solenoid
  • IP rating: IP65 (with sealed plug)
  • Mounting: Inline, Sub-base
  • B10 life, cycles: 12 000 000
  • Weight: 0,2 kg

Specifications

ManufacturerIMI Norgren
Series
TypeDirectional valves
Port connection
Max operating pressure10 bar
Flow rate1300 l/min
Housing materialAluminium
Protection class
